Back Pressure Relief Valve 1″ (NPT) 10691 RELIEF & BACK PRESSURE REGULATING VALVE – EPDM – (25 – 100 PSI) – WATER, AIR & OTHER LIQ
Original price was: $340.00.$221.00Current price is: $221.00.
Availability: 999 in stock

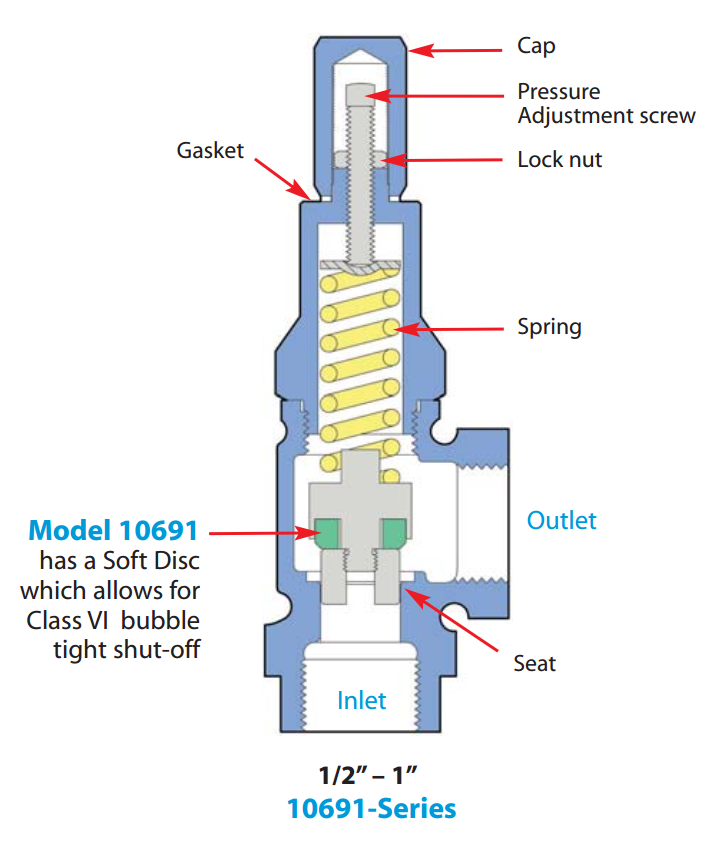

1″ (NPT) 10691 RELIEF & BACK PRESSURE REGULATING VALVE – EPDM – (25 – 100 PSI) – WATER, AIR & OTHER LIQ
The 10691 Series Back Pressure-Relief Valves are used in the following applications: Water pump bypass for irrigation, sprinkler systems on golf courses, fountains and fire protection systems Fuel oil pump bypass on commercial systems or large residential systems.
Note: 10691 Series has EPDM seat for tight shutoff.
Model: 10691 Series
Service: Liquids
Body Material: Bronze
Seat Material: EPDM
Valve Material: Stainless Steel (1/2″ – 1 1/2″), Bronze (2″ – 3″)
Max Capacity (@ 20% Over Set Pressure, 3″ Size): 16.0 GPM
Max Inlet Pressure: 300 PSIG
Sizes: 1/2″ – 1″
Connections: NPT
| Weight | 2 kg |
|---|---|
| Dimensions | 6 × 6 × 6 cm |
