ES-3500 Control Panel

CONTACT US FOR THE DESIGN & BUILD OF A CONTROL PANEL TO MEET YOUR PROJECT REQUIREMENTS
PRICE LISTED IS AN ESTIMATE

The Engineered Solutions Model ES 3500 Control Panel was incorporated to be used in conjunction with the Engineered Solutions Rainwater Collection system.
This controller monitors adjusts, regulates and reports your data on the system operation through a BACnet,
direct IP address connection or the color LCD display.

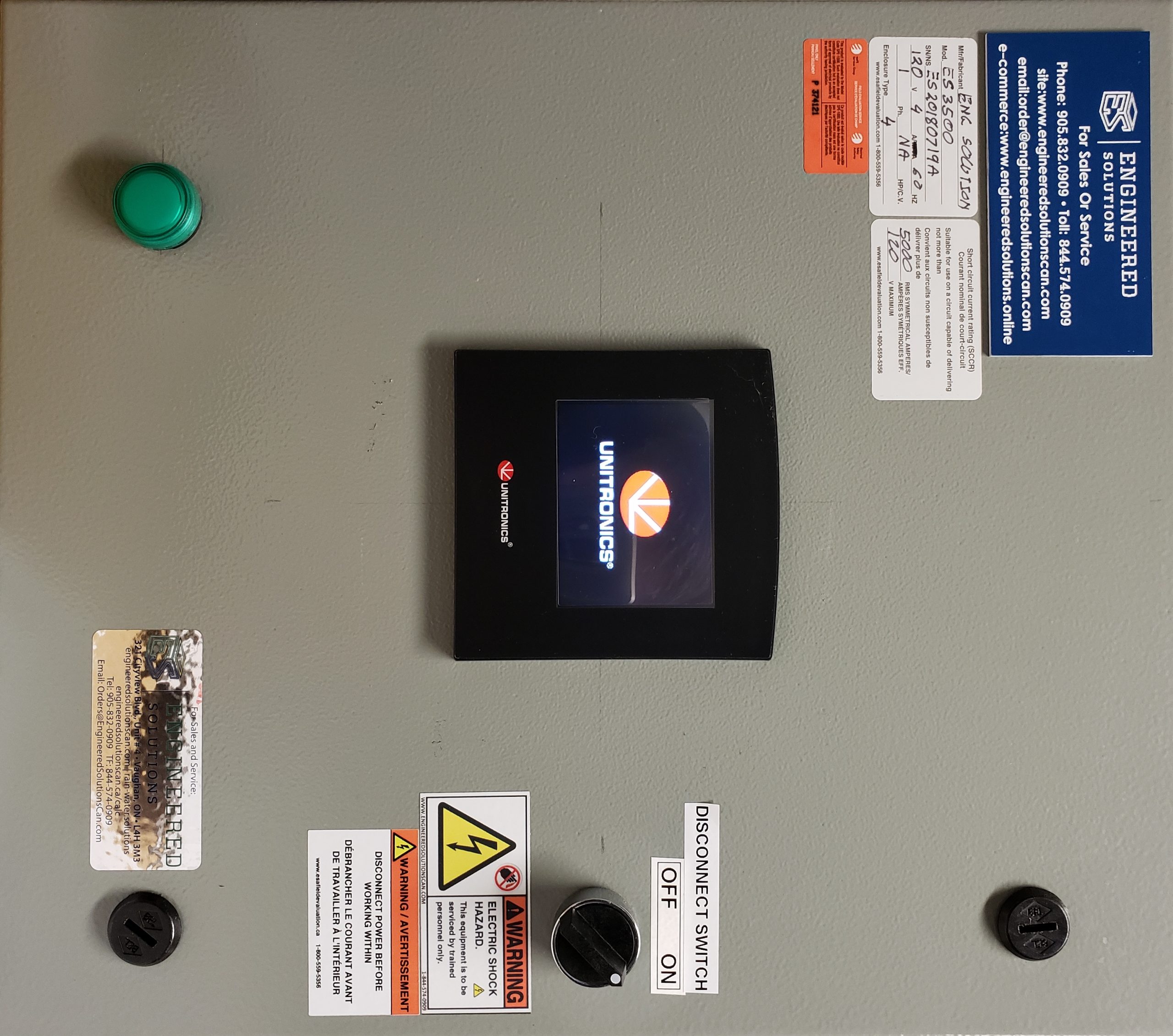

This controller displays the pertinent information on the 3.5” color touchscreen by using
multiple operational system screens. From the main screen, you can maneuver through the
different operations viewing the status of flows, pressures and be able to adjust the current setting manually. The alarm screen will show any issues that may be occurring in the system and send notifications by multi-methods or alarms. This unit has a manual reset button on the main screen to reinstate the initial program setting.
ES 3500 Control Panels can be specially Engineered to adapted to meet your every Booster Pumping, Condensate Pump, Rainwater requirements or special control pane needs.
All panels are CSA inspected and Certified by ESA

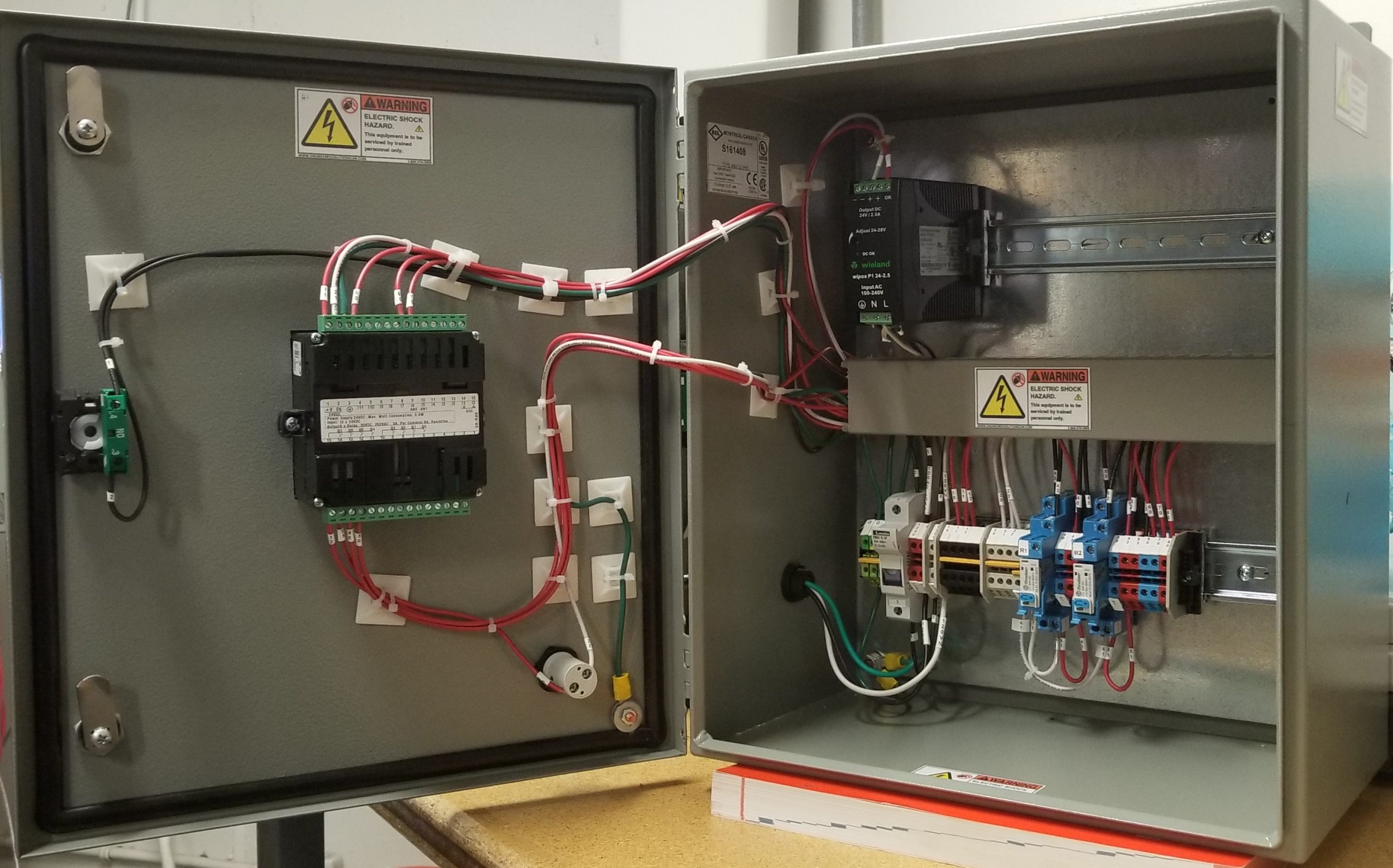

Enclosure Specifications
ES 3500 Control Panels offer as the standard:

• Steel Nema 4 Enclosure (other Nema casing available)
• On-off disconnect switch
• Manual key lock
• Green ok light,
• Circuit breaker fuses
• 9’ supply power cord for 120v/220v system,
• Built to CSA standards and tested and approved by ESA

Programmable Logic Controller

• I/O options include high-speed, temperature & weight measurement
• Auto-tune PID, up to 24 independent loops
• Recipe programs and data logging via Data Tables
• Micro SD card – log, backup, clone & more
• Date & time-based control
• HMI Interface
• Input 12 or 24VDC
• 3.5” Touch Screen
• HMI graphs – 800 x 480 TFT, LCD Display color-code Trends
• Built-in alarm screens
• Memory and communication monitoring via HMI – No PC needed

Communication Options Available:

• TCP/IP via Ethernet RJ45 connection
• Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via
• the Internet
• Send e-mail function
• SMS messaging
• GPRS/GSM
• Remote Access utilities
• MODBUS protocol support
• BACnet, M-bus – via 3rd-party converter
• CANbus: CANopen, UniCAN, SAE J1939 and more
• DF1 Slave
• SNMP Agent V1
• FB Protocol Utility: enables serial or TCP/IP communications
• With 3rd-party device; barcode readers, frequency converters, etc.
• Ports: supplied with mini-USB programming port , Other ports can be added: ie. Serial/Profibus and 1 CANbus,  RS232/RS485 and  Ethernet port
• * Access to and configuration of your Internet Firewall will be required for remote access

Control Panel Design/Build/Program/Maintain
Our in-house control panel team designs, builds, programs and tests all PLC Control Panels for all of our projects.  Having a dedicated in-house team allows us to provide the required features and capabilities, quickly and reasonably priced.  All of our panels are inspected, tested & certified by the
FIELD EVALUATION SERVICE OF ESA (Electrical Safety Authority of Ontario) to ensure compliance with the CSA Standard SPE-1000-13 – Model Code for the field evaluation of electrical equipment.
