Thermodynamic Steam Trap 1/2″ (SW) THERMODYNAMIC TRAP W/ STRAINER
Original price was: $630.00.$409.50Current price is: $409.50.
Availability: 999 in stock
1/2″ (SW) THERMODYNAMIC TRAP W/ STRAINER

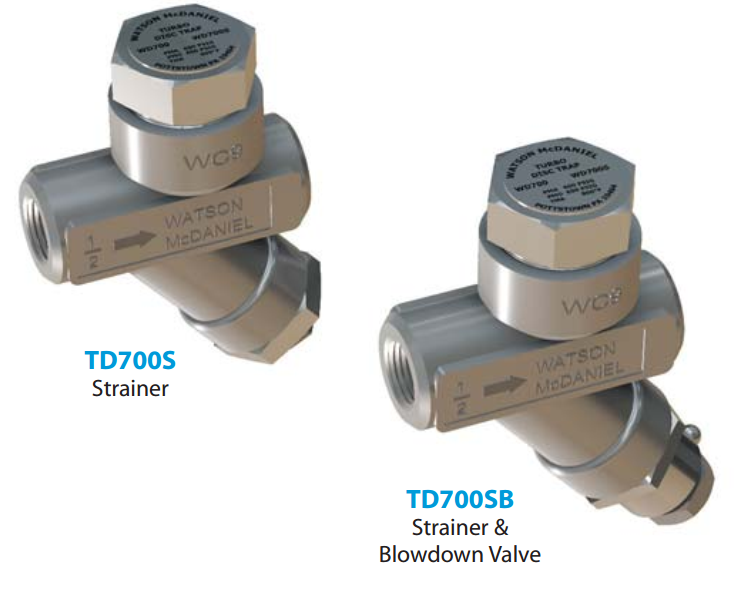

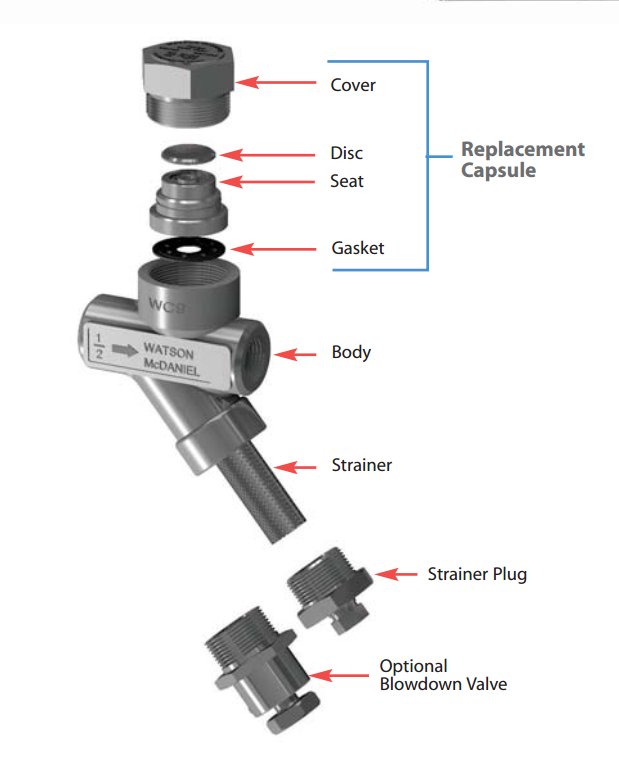

DRIP, TRACER: The TD700S Thermodynamic Steam Trap is commonly used as a drip trap on steam mains and steam supply lines. These traps are used on tracing applications; however, thermostatic traps are normally recommended for this service. Supplied with an integral strainer and optional blowdown valve to protect the trap from contamination. The internal working mechanism of the WD700S can be completely replaced while the trap body remains in line. Ideal for outdoor applications that are subject to freezing and for superheated steam conditions.
Note: Model TD700HS is a high-pressure version of the standard WD700S model.
Model: TD700S
Body Material: Chrome-Moly Alloy Steel
Max Operating Pressure: 600 PSIG
Max. Capacity: 1,750 lbs/hr
Sizes : 1/2″ – 1″
Connections: NPT, SW, FLG
| Weight | 2 kg |
|---|---|
| Dimensions | 6 × 6 × 6 cm |
